150W Switching Power Supply AC110/220V to DC 0~24V 6A Buck Convertter/Adjustable Regulator DC 5V 12V 24V Adapter/Driver



Parameters:

  • Input voltage: AC110/220V±15%
  • Input frequency range: 47~63Hz
  • Output voltage: DC 0~24V
  • Output current: 6A ( max )
  • Output adjustable range: ±10% (rated output voltage)
  • Inrush starting current: 20A @120VAC (cold boot)
  • Rated power: 150W
  • Over-load protection: 115%~135% (rated output voltage)
  • Short-circuit protection: self-recovery
  • Output start time: ≤2S@120VAC ≤1.0S@230VAC
  • Output hold time: ≥10mS@120VAC,≥20mS@230VAC
  • Working environment: -10°c~50°c;20%~90%RH(no condensation)

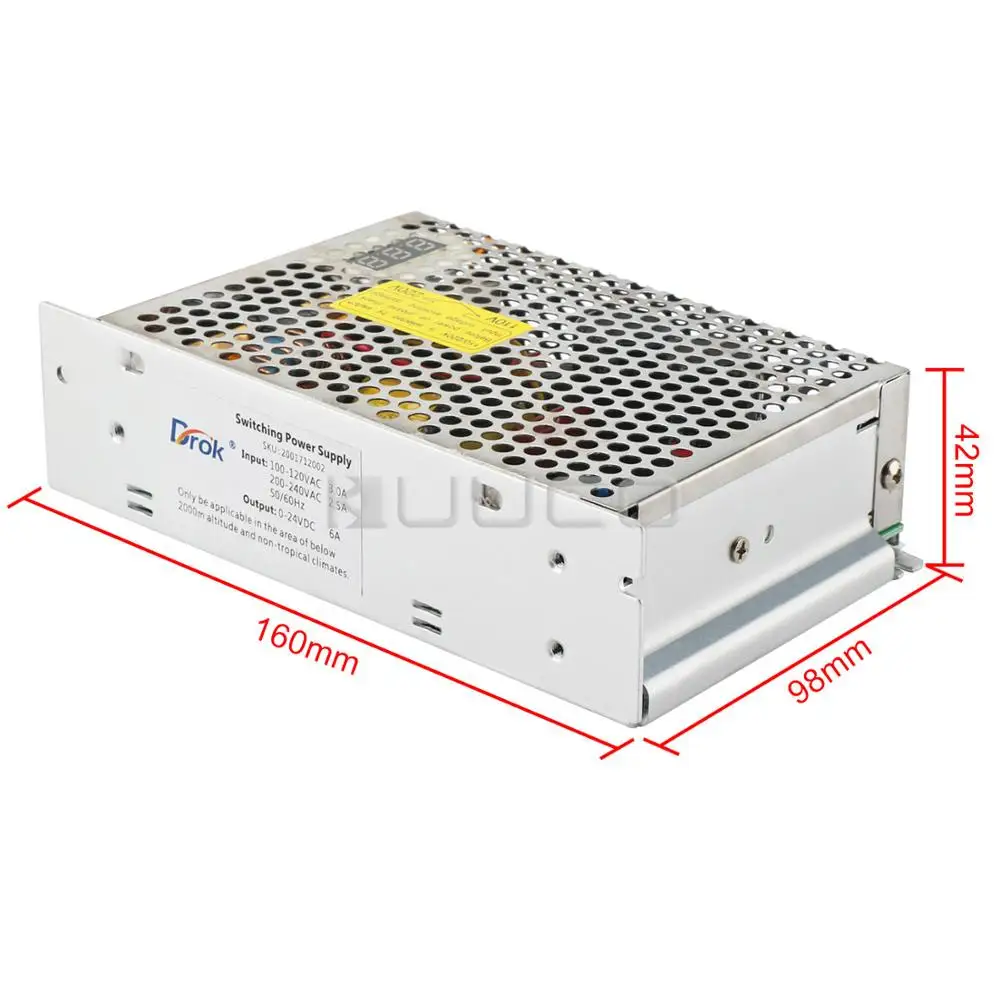

  • Product size: 160*98*42mm

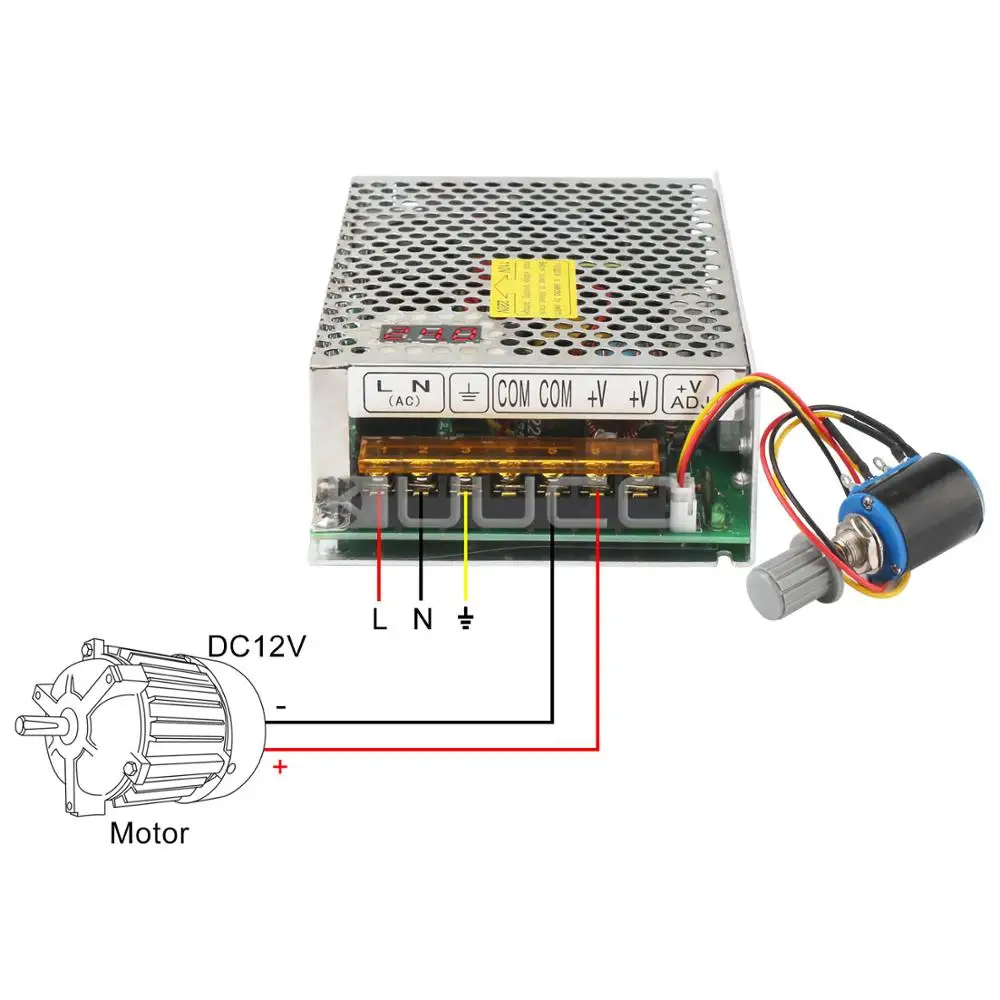

Wiring Guidance:

  • LN --- AC input
  • 〨--- ground
  • V+ --- DC output+
  • COM --- DC output-

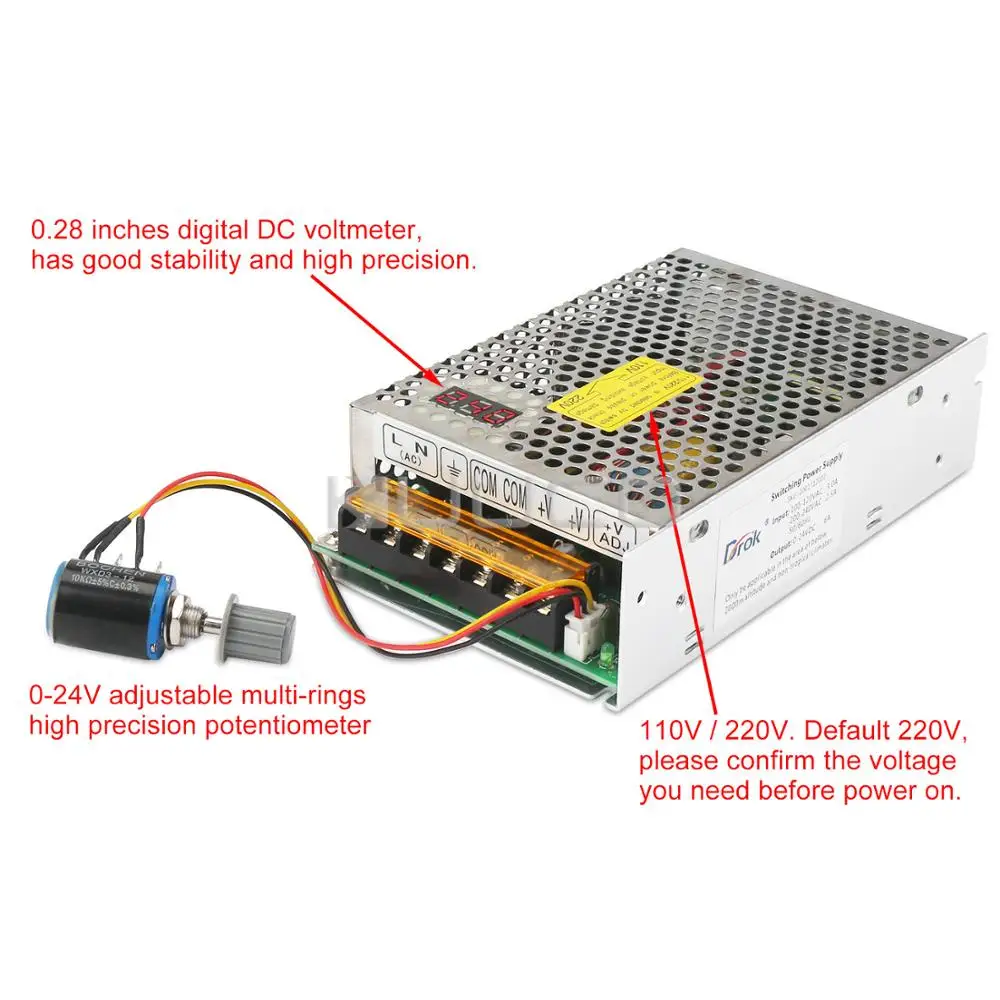

  • ADJ--- adjustable potentiometer, adjust the DC output voltage

Application:

  • Mainly apply for various of scientific research, student experiments, DC motor stepless speed regulation, LED stepless adjusted, chemical electroplating speed regulation, etc.

Notes:

  • 1. Whatever the voltage is adjusted to, the maximum current is 6A. And the current cannot be adjusted, the actual current determined by the load.
  • 2. When you use the inductive load, such as motor, fan, please pay attention to the maximum starting current value of the motor, this value should not be higher than the maximum using current. Otherwise, it may cause the power damaged, and it should choose a greater current power supply, or equipped with soft start protection circuit to absorb impact current for the motor

Package Includes:

  • 1 x Switching Power Supply ( Adapter/Regulator/Driver )
