Dual Output 150W Regulated Switching Power Supply AC 110V 220V to 24V 5A & 5V 6A Constant voltage light transformer Led adapter

Dual Output 150W Regulated Switching Power Supply AC 110V 220V to 24V 5A & 5V 6A Constant voltage light transformer Led adapter
  • Продавецwww.ogloszeniabochnia.info
  • Список ценUS $23.54piece
  • Продажная ценаUS $23.54piece
  • ДоставкаБесплатная доставка
  • Рейтинги4,7 (737)

Oписание продукта

Top-ship

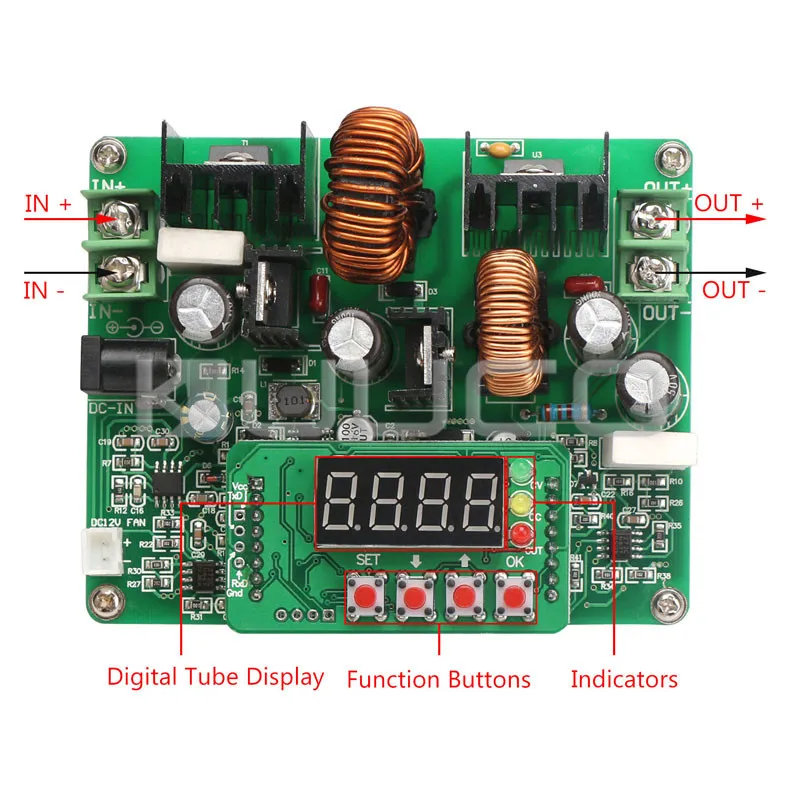

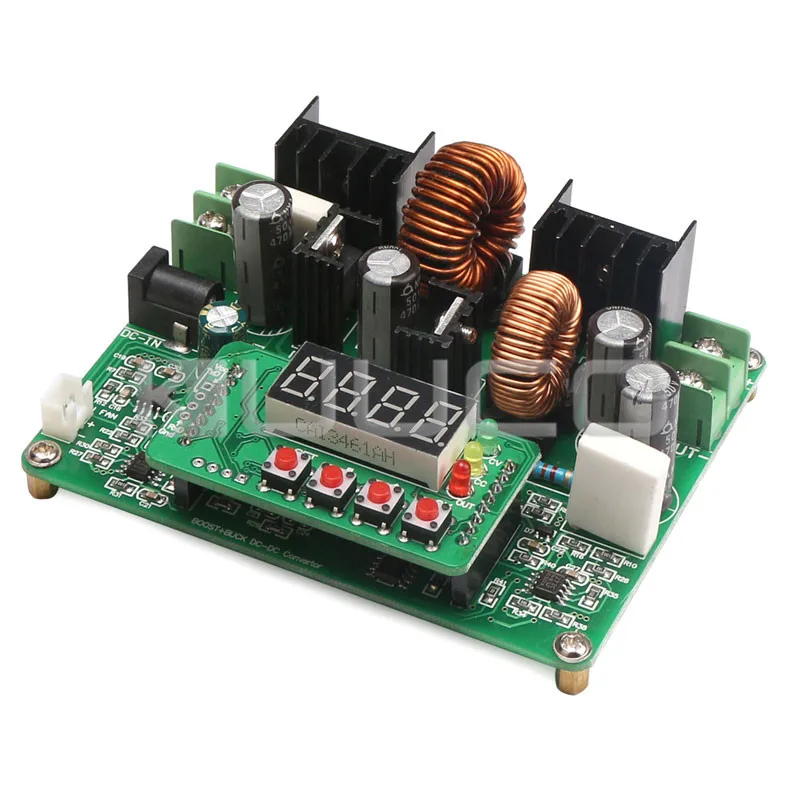

240W NC Voltage Regulator Buck Boost Converter DC 10~40V to 0~38V 6A Power Supply Module DC12V 24V Adapter/Driver



Parameters:

  • Input voltage: DC 10~40V
  • Output voltage: DC 0~38V
  • Output current: 0~6A
  • Output power: 240W
  • Conversion efficiency: 92%
  • Working frequency: 150KHz
  • Short circuit protection: constant current
  • Operating temperature :﹣40℃~+85℃
  • Control method: numerical control + digital tube display
  • Voltage regulator/display resolution: 0.01V
  • Minimum resolution of power display: 0.001W
  • Current regulator/display resolution: 0.001A
  • Minimum resolution of capacity display: 0.001AH
  • Output ripple: ≤50mV
  • Weight: 116g

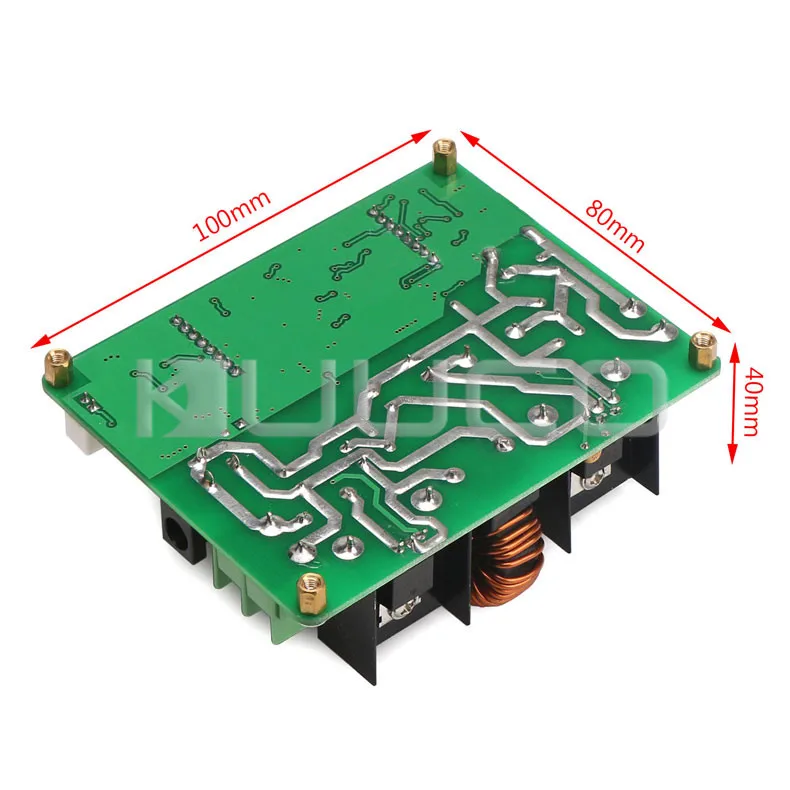

  • Dimensions: 100 x 80 x 21mm

Product description

  • 1. Adopts advanced microprocessor, can regulate output voltage and current accurately;
  • 2. Can step up and step down the voltage;
  • 3. All display by digitals, convenient and easy to use;
  • 4. Has constant voltage and constant current statue;
  • 5. Uses 4 digits high brightness LED, can display output voltage, current, power and capacity and other parameters;
  • 6. Voltage, current, power, capacity and other parameters can be switched to display automatically or manually;
  • 7. Has output OUT, constant voltage CV and constant current CC indicators;
  • 8. Can be set whether to output automatically when power on;
  • 9. The set voltage and current values can be saved by key;
  • 10. Has memory saving function, can store 10 groups of parameters and they can be freely stored and called out;
  • 11. The maximum input current is 8A under step up mode, when the output voltage is much larger than input voltage, the output current may not be up to 6A.

Features:

  • It\'s a fully digital display numerical control cc cv step up step D module, which adopts advanced microprocessor, can regulate output Voltage and current accurately, has high efficiency and Stable performance; the input Voltage can be lower or higher than the output Voltage, also can be the same as the output Voltage
  • The module has two kinds of modes: simple mode and fully functional mode(simple mode by Default); uses 4 digits high Brightness LED, can display output Voltage, current, power and capacity and other parameters; has out, cc, cv indicators and memory saving function, can store 10 Groups of parameters and they can be freely stored and called out
  • Simple mode: after setting the Voltage and current values, pressing "OK" the module will output, then use the "↑" "↓" buttons to increase or decrease the value at output statue, short press "OK" to switch between Voltage and current display, long press for 3 seconds to turn on/off the function of displaying Volt and amp in turns
  • Under fully functional mode, there are three special functions: 0 output automatically when power on; 1 save and call out the parameters, display power and capacity; 2 take turns to show the parameters after output automatically you can open them by yourself
  • Perfect for electronic hobbyists and suitable for wind power, DC generator, solar panels to charge battery, you can also make your own power supply to power up devices; please connect wires correctly and enhance heat dissipate when the output current is over 5A

Package Includes:

  • 1 xNumerical Control Boost Buck Converter( Power Supply Module/Adapter )
